Protective Wall
A modular protection system made from galvanized steel plates with internal supports and filled with sand.
The system can be supplied in different sizes and configurations for use in a wide variety of purposes and scenarios.
Simple and easy manual assembly, no tools necessary.
The system consists of easy to assemble and dismantle galvanized steel panels.
Advantages
Wall sections are provided in a variety of thicknesses making the system suitable for protection, both at the front line and in civilian areas.
The filling material can be sand, gravel or any other readily available, inert material. Only the light steel sheets must be transported to the site.
Assembly is simple and easy – the system consists of galvanized steel panels that are easy to assemble and disassemble.
The system can be used to create fences and partitions up to 5 m. high without the need for a wide base. If needed, wall sections are easily dismantled and moved to a new location for reuse.
PROTECTION AND CONCEALMENT OF INSTALLATIONS, INFRASTRUCTURES AND EQUIPMENT
THE SYSTEM WAS SUCCESSFULLY TESTED AGAINST THE FOLLOWING THREATS:
Petrol bombs and stones
Light weapons fire – up to and including 0.5 in.
Heavy shrapnel and hand grenades
Direct hit and near miss from mortar shells up to and including 120 mm
Blast from aerial explosions and missiles according to specified threats.
Nearby detonation of car bomb with 2.5 tons (!) of explosives
Threat assessments and specification determines the required wall thickness.
CIVILIAN USE
Detachable sealed fence that can be assembled quickly and effectively on site with available manpower and no tools. Used to conceal and isolate:
Fires
Floods
Acoustic insulation
Blocking line of site and observation
Hostile vehicles
Kidnappers
Thieves, burglars
And more…
SIMPLE AND EASY CONSTRUCTION
Tools needed for assembly:
Truck or light-truck to transport the various sections.
Assembly team – 3 – 4 workers
Digger/Mechanical shovel/Big Bag

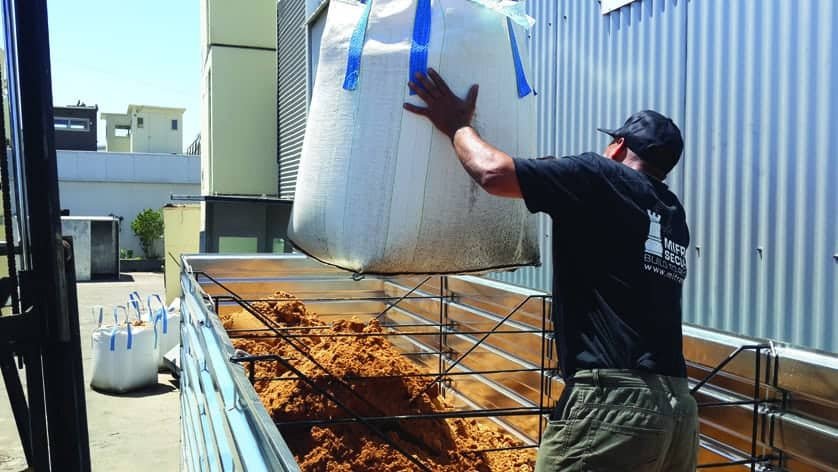

Using a Big-Bag

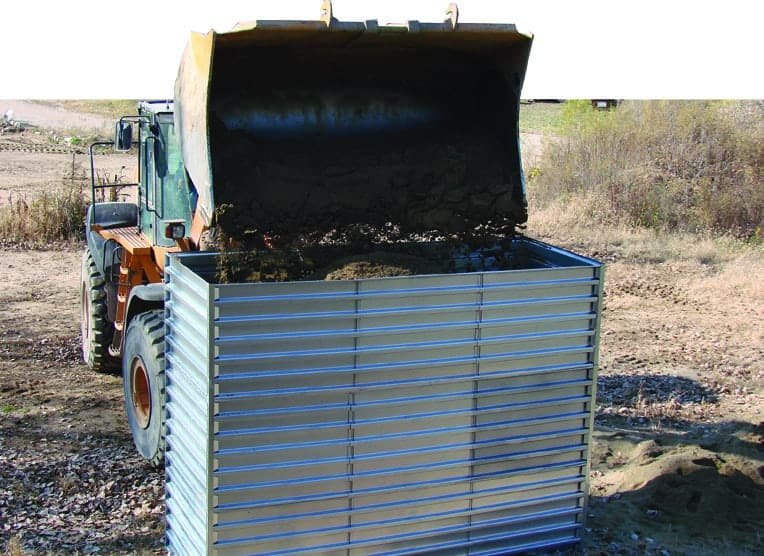

Using a tractor

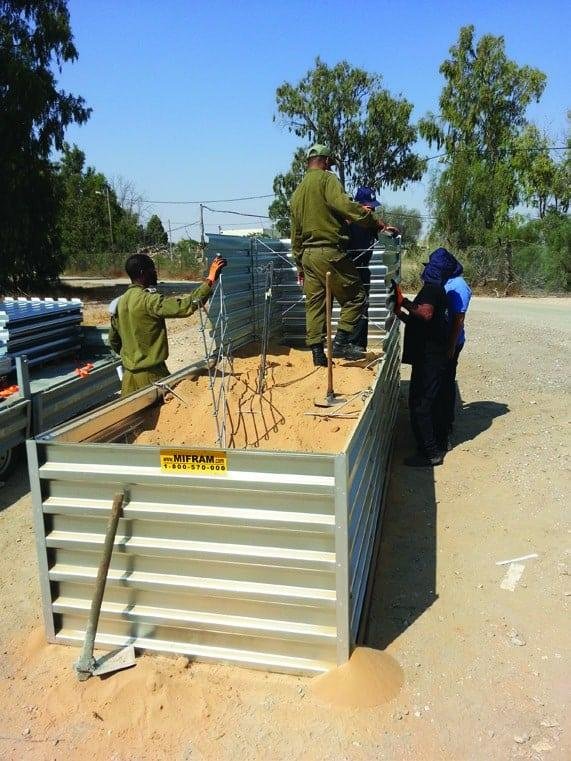

Requires no skilled labor
Modular Defense Wall:
Protective wall used internationally:
The protective wall system was, amongst other contracts, awarded a multi-year tender to protect UN bases across the globe from a range of threats. PRO-TEC protects UN forward bases and installations in Israel and conflict areas using barriers and roadblocks, protective equipment and protective walls.
The protective wall can be supplied in different dimensions
- Length: multiples of 1.25 m
- Height: 1 m. up to 5 m.
- Length ~1.25 m. / ~2.5 m. / ~3.75 m. / ~5 m. / etc.
- Width ~1.44 m.
- Height ~1 m / ~2 m / ~3 m / ~4 m / ~5 m.
