DROM- D360.V3
Reactive Anti-Drone/Quadcopter/Small UAV Jamming system
MC-Horizon.D360.V3 PRO-TEC’s flagship product, is a multilayer, battle proven counter drone solution which provides wide area, long range, and high accuracy anti drone system with the following capabilities: RF detection, automatic alert, classification and neutralization.
MC-Horizon.D360.V3 can be integrated on a vehicle a boat or any vessel to provide protection against drones and UAV while on the move.
Description:
The main objective of the MC-Horizon.D360.V3 is to create an invisible barrier against civilian Drone /Quadcopter /UAV communication to prevent them from infiltrating sensitive location, secured compounds, Military bases and etc., or in order to protect a V.I.P against armful attack carried out by those systems.
The MC-Horizon.D360.V3 system detects drone presence by analyzing signaling channel and radio transmission (both the uplink and downlink). Once a drone has been detected it automatically triggers a neutralization system which deactivate the drone/quadcopter from any operation.
The MC-Horizon.D360.V3 system can be integrated into any boat vehicle or vessel to protect a convoy or a VIP while on the move
- A multi band RF sensor able to detect civilian drone in a radius of up to 1500m

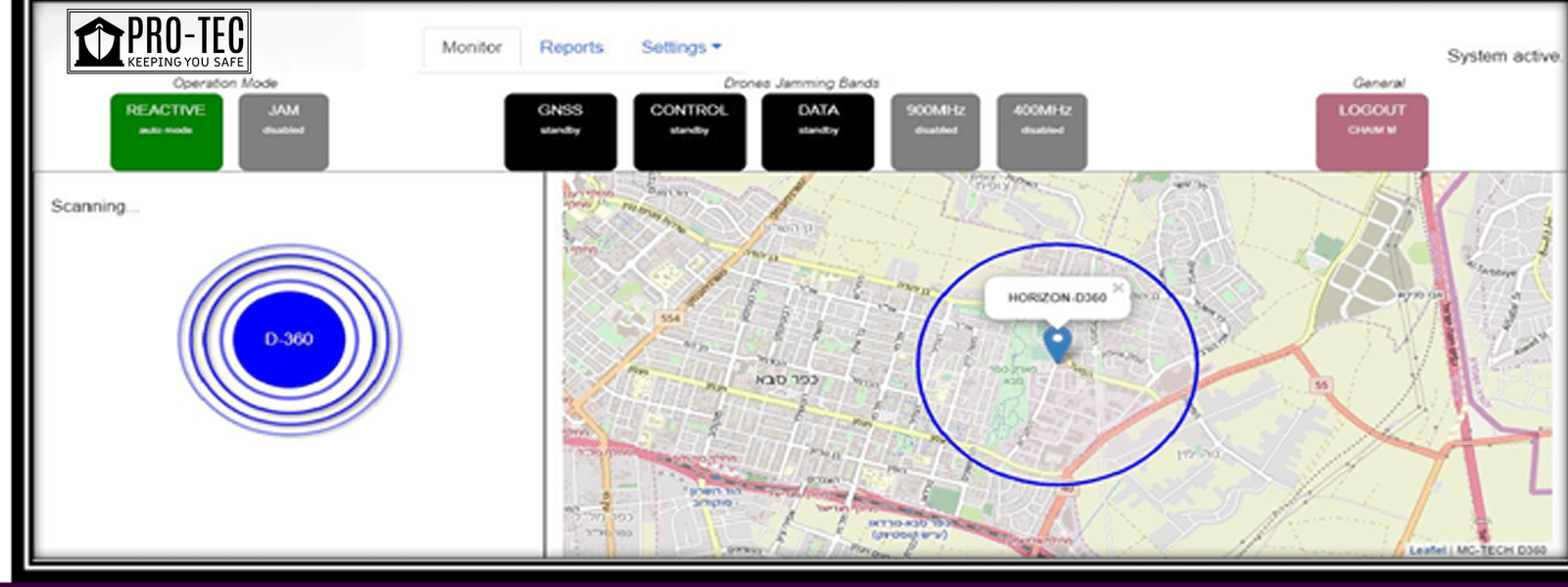

- Remote control C2 tablet that visualize protected area and location, jamming preset configuration, unit preset activation and real-time scanning status and real time notification including type of detected drones
- The system automatically send a notification to selected preset cellular numbers via internet modem. The system can also trigger an alarm using a siren and/or light
- A highly effective set of RF electronic countermeasures 360° or 90° around the protected sight is being generated, blocking all civilian drones from penetrating the area
Key Features:
- Create an invisible dome of detection in a radius of up to 1.5km
- Supports 2.4/5.8 and civilian drones Wi-Fi communication protocol
- Create an invisible dome of neutralization in a radius of up to 500m, 360° or a 1km in a 90°
- Blocks common Civilian drone/Quadcopter/UAV bands simultaneously (full protection against swarm attack)
- Reactive Jamming System triggered by RF continuous aerial scanning of drone’s uplink and downlink communication
- Controlled by C2 Tablet with the following features:
- Visualization of system location on a map
- Visualization of protected area (Detection + neutralization)
- Classification of detected targets by brands
- Visual & sound alert upon detection
- Activation of jamming band either completely automatic upon detection or manually
- Activation of each jamming band independently
- Users’ management
- Internal log and reports system
- Upgradable threat library via LAN cable
- Automatically sends SMS notification to predefined numbers
- Internal Modem for SMS notification and 3G/4G access
- Mobile pelican outdoor casing water resistant
- No interference to nearby frequency bands
- VSWR- disconnect/short antenna protection
- Overheat protection: 75˚c cease operation, 71˚c resume of operation
- Operational Power: 90 – 260 12/24VDC
- Weight: approx. 20kg

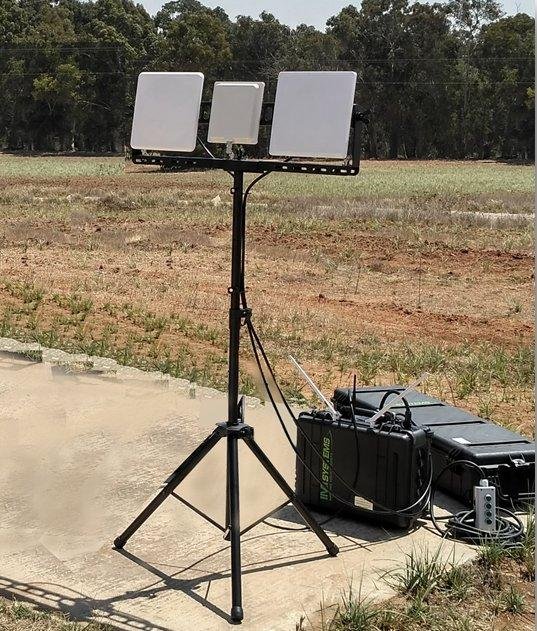

Figure 1: MC-Horizon D360 V.3 CC
OPERATIONAL SCENARIO
Aerial targets flying in the protected perimeter are detected and tracked by the RF Sensor.
On the C2 Remote control the operator sees a warning light + voice message notifies
about the incoming drone, he also receives detailed information about the type and the model. Simultaneously the system sends an SMS message to predefined numbers alerting them about the drone threat in the vicinity of the protected area.
Once a drone has been detected the system automatically/manually activates the jamming system. A highly effective set of RF electronic countermeasures 360° or 90° around the protected sight. Drone loses its control signal
SYSTEM TECHNICAL SPECIFICATION:
| DETECTION SYSTEM RF SENSING | ||
|---|---|---|
FREQUENCY BANDS | ||
1. RF SENSOR 2.4, Wi-Fi links, | ||
2. RF SENSOR 5.8, Wi-Fi links, | ||
ANTENNAS | Omni High Gain Antennas | |
Dimensions | 24 cm | |
Weight | 140 Grm | |
Gain | 6 dBi | |
OPERATIONAL POWER | [90 – 260]VAC / 24VDC Internal Power Supply | |
Frequency Resolution | 10 KHz, 25 KHz, 100 KHz, 1 KHz | |
Frequency Accuracy | Better than 0.5 ppm | |
Synthesizer Setting Time | Better than 3ms | |
Antenna input | 50Ω VSWR – 2:1 | |
Sensitivity, Overall Noise Figure | -90dBm, typ. For SNR 10 db | |
Gain Control | 80 dB | |
| NEUTRALIZATION SYSTEM | |||
|---|---|---|---|
FREQUENCY BANDS | OUTPUT POWER | ||
1. 1560-1610 MHz – GPS L5 & Glonass L1, Galileo | [30] W / [44] ±1.5dbm | ||
2. 2400-2500 MHz – Wifi 11 b,g | [30] W / [44] ±1.5dbm | ||
3. 5100-5900 MHz – Wifi 11.a | [20] W / [43] ±1.5dbm | ||
FINAL SPECTRAL BANDS AND POWER OUTPUTS SHALL BE FINALIZED UPON COMPLETION OF REQUEST | |||
TOTAL POWER OUTPUT | 80Watt | ||
TOTAL NUMBER OF FREQUENCY BANDS | 3 Bands | ||
MODULATION | FM | ||
ANTENNAS | 1 omni high shark high gain antenna 2 Directional High Gain Antennas 90° | ||
ELECTRICAL | |||
PROTECTION | VSWR protection Overheat Protection: 75c cut-off operation 71c resume of operation | ||
OPERATIONAL POWER | [90 – 260] VAC / 24VDC Internal Power Supply | ||
COOLING | Forced Air Cooling | ||
CONTROLS & INDICATORS | On/Off switch & indicator, Reactive/Active Indicator External Wired C2 tablet remote control via LAN Windows 10/Android based software | ||
MECHANICAL | |||
MODE OF DEPLOYMENT | Rapid Deployment/Mobile | ||
CASING | Pelican CASING (shock resistant) | ||
WEIGHT | ~20kg (Depend on Backup Battery) | ||
ENVIRONMENTAL | |||
OPERATING TEMPERATURE RANGE | -15˚c to +75˚c | ||
RESISTANCE | IP52 | ||
RELATIVE HUMIDITY | 5% - 80% non-condensing | ||
| EXTERNAL BATTERY BANK | |||
|---|---|---|---|
CAPACITY | 1000 Watt | ||
CONTROLS & INDICATORS | On/Off switch & indicator | ||
MECHANICAL | |||
MODE OF DEPLOYMENT | Mobile | ||
CASING | Ruggedized Casing | ||
WEIGHT | ~28kg | ||
ENVIRONMENTAL | |||
OPERATING TEMPERATURE RANGE | -15˚c to +60˚c | ||
RELATIVE HUMIDITY | 5% - 80% non-condensing | ||
RESISTANCE | IP-65 | ||
